TREE SHEAR FOR EXCAVATOR BI100
to cut up to 150 mm in diameter
The BI100 tree shear for excavators, the smallest in the range, is designed for felling trees and plants from 40 to 150 millimetres in diameter, in any work context.
Weighing only 140 kg, it can be installed on excavators, skid steer loaders, backhoe loaders and tractors from 1.5 to 3 tonnes operating weight, thanks to the supplied adapter plate.
TECHNICAL FEATURES
Plant cutting is ensured by the bolted blade, which allows quick replacement in the event of wear.
The tree shear features one double-acting hydraulic line, which, thanks to the high-performance cylinder, allows cutting and holding of the tree in a single action.
Also available with our turnkey kit, consisting of:
- mounting bracket, specific to your operating vehicle;
- dedicated hose kit.
This way you can quickly install your equipment and start working, without worrying about the rest.
The BI100 tree shear for excavators, the smallest in the range, is designed for felling trees and plants from 40 to 150 millimetres in diameter, in any work context.
Weighing only 140 kg, it can be installed on excavators, skid steer loaders, backhoe loaders and tractors from 1.5 to 3 tonnes operating weight, thanks to the supplied adapter plate.
TECHNICAL FEATURES
Plant cutting is ensured by the bolted blade, which allows quick replacement in the event of wear.
The tree shear features one double-acting hydraulic line, which, thanks to the high-performance cylinder, allows cutting and holding of the tree in a single action.
Also available with our turnkey kit, consisting of:
- mounting bracket, specific to your operating vehicle;
- dedicated hose kit.
This way you can quickly install your equipment and start working, without worrying about the rest.
SEE TECHNICAL SPECIFICATIONS
Larghezza
Width
Lunghezza
Length
Altezza
Height
BI100
1,5 – 3 tons
140 Kg
310 lbs
40 mm
1,5″
150 mm
6″
180 – 220 bar
2610 – 3190 psi
25 – 40 l/min
7 – 11 gal/min
800 mm
31″
775 mm
30″
420 mm
16″
CHOOSE THE MATCHING ACCESSORY
360° ROTATION
Rotating ring to rotate the shear 360° clockwise and anticlockwise and to allow cutting of branches or plants at different angles.

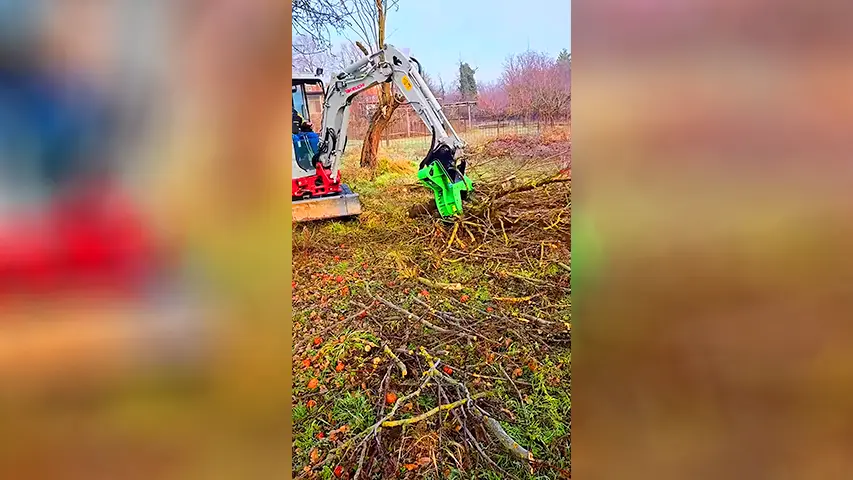

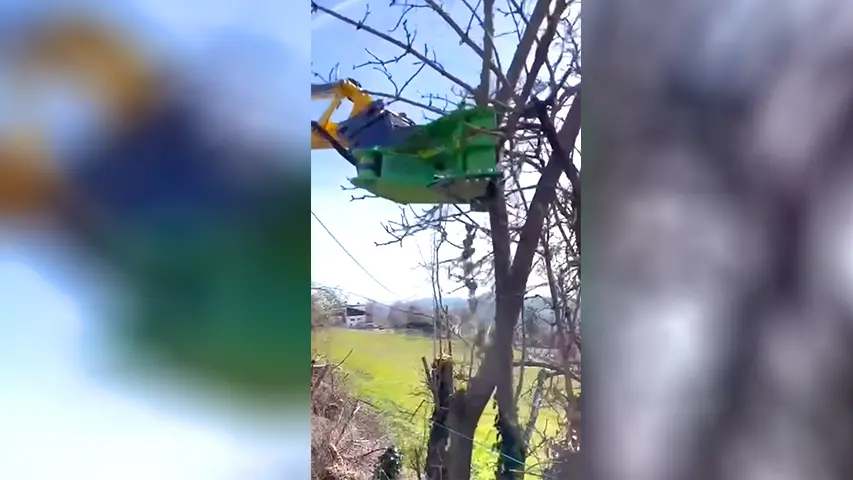

WATCH THE BI100 TREE SHEAR FOR EXCAVATOR AT WORK
