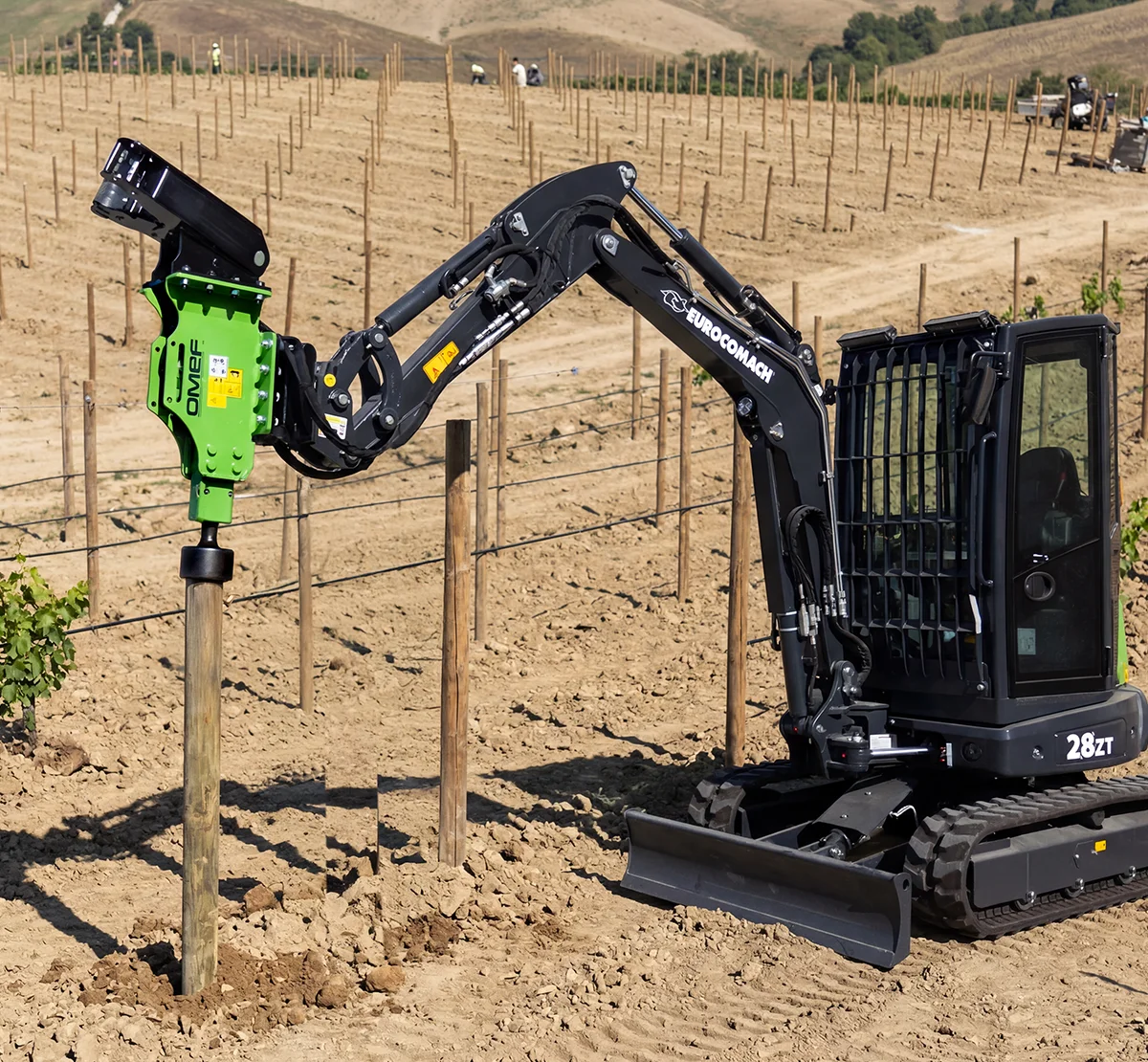

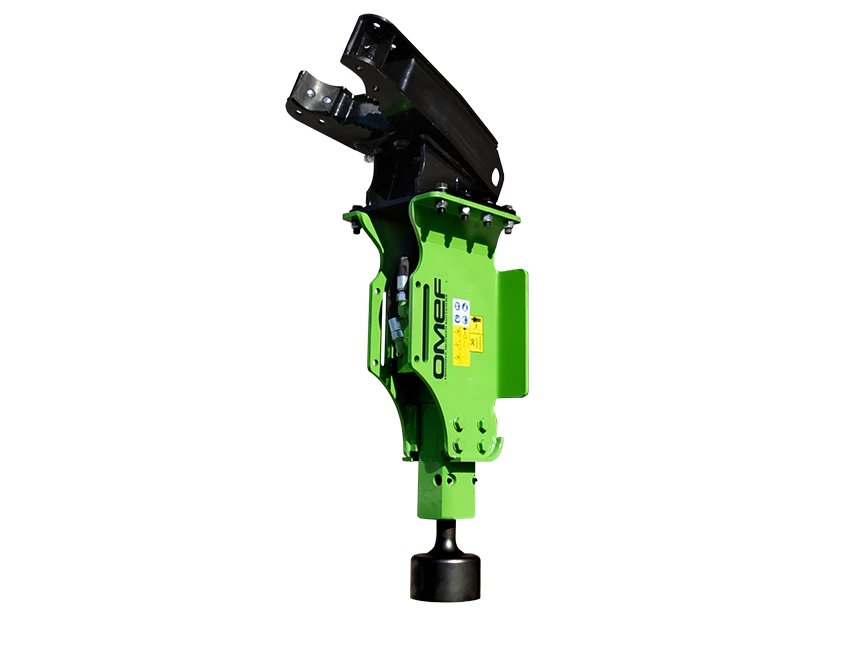

Post driver for excavator omef with grapple is designed for handling, positioning and installing posts of different shapes and materials, making it an essential tool for professional work in vineyards and orchards.
The structure of the attachment combines two operating functions in a single body: a powerful hammer designed for driving posts into the ground, and a shaped upper grapple for picking up and positioning posts.
The latter allows precise gripping, handling and positioning of both cylindrical and square posts.
The grapple is also equipped with a toothed section, designed not only for handling operations but also for uprooting tasks.
The attachment is available in 6 models for installation on backhoe loaders and mini excavators from 1.5 tons up to 10-ton excavators.
TECHNICAL FEATURES
The system is operated by two separate hydraulic lines to ensure maximum control:
a “one-way flow” to hammer;
a “ two-way flow” to grapple.
Thanks to the valve block that self-regulates the oil flow, overload pressure on the hydraulic system is prevented.
Our ‘turnkey’ kit is available on all models, consisting of:
• Mounting bracket, specific to your operating vehicle;
• Dedicated hose kit.
This way you can quickly install your equipment and start working, without worrying about the rest.
Post driver for excavator omef with grapple is designed for handling, positioning and installing posts of different shapes and materials, making it an essential tool for professional work in vineyards and orchards.
The structure of the attachment combines two operating functions in a single body: a powerful hammer designed for driving posts into the ground, and a shaped upper grapple for picking up and positioning posts.
The latter allows precise gripping, handling and positioning of both cylindrical and square posts.
The grapple is also equipped with a toothed section, designed not only for handling operations but also for uprooting tasks.
The attachment is available in 6 models for installation on backhoe loaders and mini excavators from 1.5 tons up to 10-ton excavators.
TECHNICAL FEATURES
The system is operated by two separate hydraulic lines to ensure maximum control:
a “one-way flow” to hammer;
a “ two-way flow” to grapple.
Thanks to the valve block that self-regulates the oil flow, overload pressure on the hydraulic system is prevented.
Our ‘turnkey’ kit is available on all models, consisting of:
• Mounting bracket, specific to your operating vehicle;
• Dedicated hose kit.
This way you can quickly install your equipment and start working, without worrying about the rest.
SEE TECHNICAL SPECIFICATIONS
pinza/grapple
OM-90
1,5 – 2 tons
140 Kg
309 lbs
180 bar
2611 psi
90-110 bar
1305-1450 psi
20-25 l/min
5-6 gpm
OM-120
1,8 – 2,5 tons
160 Kg
353 lbs
180 bar
2611 psi
95-120 bar
1378-1740 psi
23-27 l/min
6-7 gpm
0M-151
2,5 – 3 tons
190 Kg
419 lbs
180 bar
2611 psi
95-120 bar
1378-1740 psi
27-30 l/min
7-8 gpm
OM-200
3,5 – 4,5 tons
290 Kg
639 lbs
180 bar
2611 psi
120-140 bar
1740-2030 psi
30-45 l/min
7-12 gpm
OM-250
4,5 – 6 tons
340 Kg
750 lbs
180 bar
2611 psi
130-145 bar
1885-2103 psi
33-55 l/min
9-14 gpm
OM-333
6 – 8 tons
400 Kg
882 lbs
180 bar
2611 psi
130-145 bar
1885-2103 psi
60-90 l/min
16-24 gpm
OM-450
7 – 10 tons
540 Kg
1180 lbs
180 bar
2611 psi
140-150 bar
2030-2175 psi
66-110 l/min
17-29 gpm
Why POST DRIVER FOR EXCAVATOR OM
With a convenient grapple for picking up and handling posts.
Robust and durable structure made of high-strength steel.
Consistent performance even under high back pressure.
