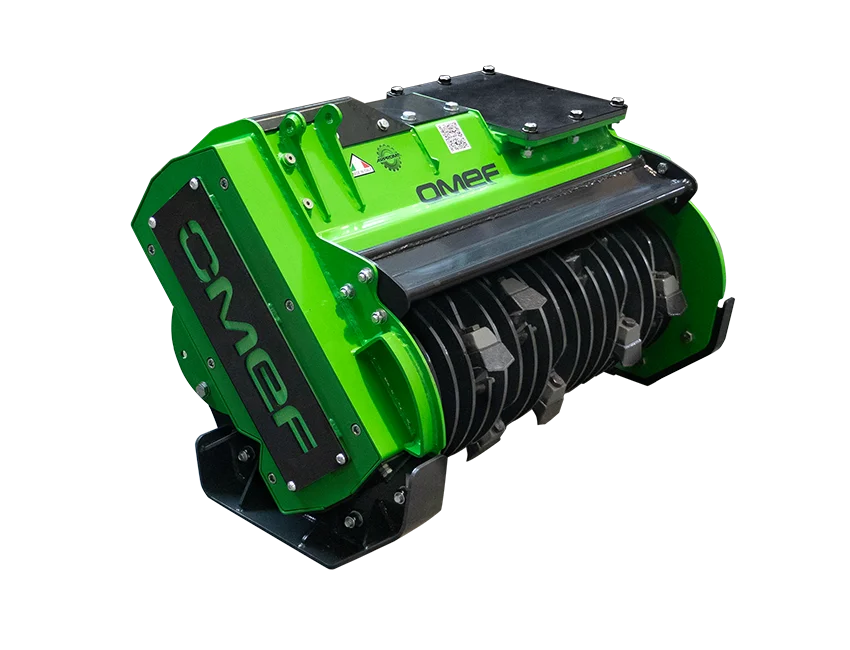

EXCAVATOR MULCHER TE9DF2
forestry type for shredding grass, shrubs and plants up to 200 mm in diameter.
Excavator mulcher TE9DF2 is designed for the forestry sector and is available in different models.
Customizable with 3 different rotors: with hammers or knives, with rotating hammers or fixed teeth, with a bite limiter, to further enhance shredding performance.
TECHNICAL FEATURES

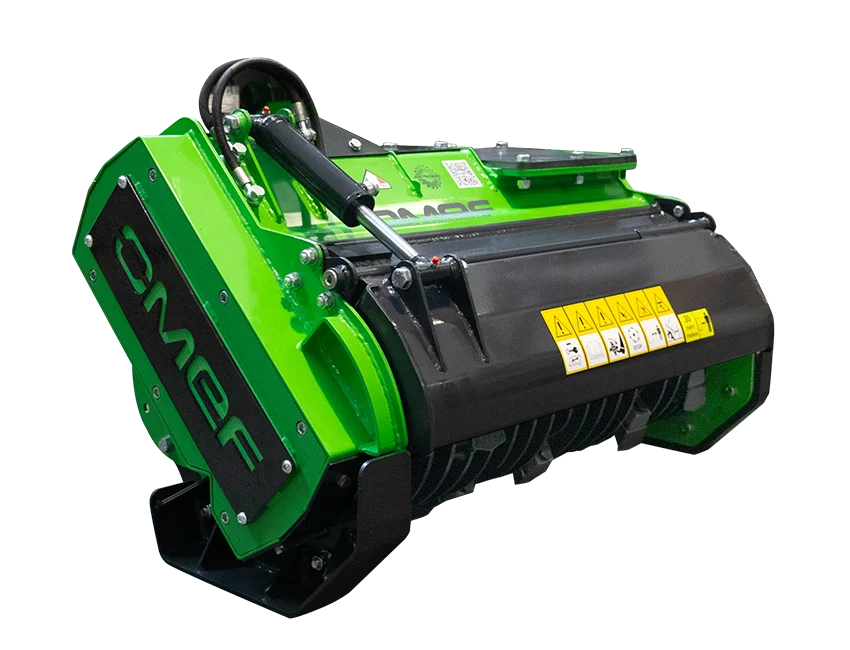

The structure has two different conformations, characterised by the presence of a hydraulic door (which can be closed for safety) in the SP version and without a hydraulic door (for greater cutting capacity).
The cast iron motor offers greater strength and durability, and is available in different displacements for best performance.
The hydraulic system requires a single-acting line and is controlled by the valve block, which optimises and protects the motor from oil flow.
Safety is ensured to CE standards by the hydraulic door, which can be activated with a solenoid valve.
The mulcher can be installed on excavators from 5 up to 12 tonnes operating weight, thanks to the supplied adapter plate.
Also available with our turnkey kit, consisting of:
- mounting bracket, specific to your operating vehicle;
- dedicated hose kit.
This way you can quickly install your equipment and start working, without worrying about the rest.
Excavator mulcher TE9DF2 is designed for the forestry sector and is available in different models.
Customizable with 3 different rotors: with hammers or knives, with rotating hammers or fixed teeth, with a bite limiter, to further enhance shredding performance.
TECHNICAL FEATURES
The structure has two different conformations, characterised by the presence of a hydraulic door (which can be closed for safety) in the SP version and without a hydraulic door (for greater cutting capacity).
The cast iron motor offers greater strength and durability, and is available in different displacements for best performance.
The hydraulic system requires a single-acting line and is controlled by the valve block, which optimises and protects the motor from oil flow.
Safety is ensured to CE standards by the hydraulic door, which can be activated with a solenoid valve.
The mulcher can be installed on excavators from 5 up to 12 tonnes operating weight, thanks to the supplied adapter plate.
Also available with our turnkey kit, consisting of:
- mounting bracket, specific to your operating vehicle;
- dedicated hose kit.
This way you can quickly install your equipment and start working, without worrying about the rest.
BUILD YOUR MULCHER

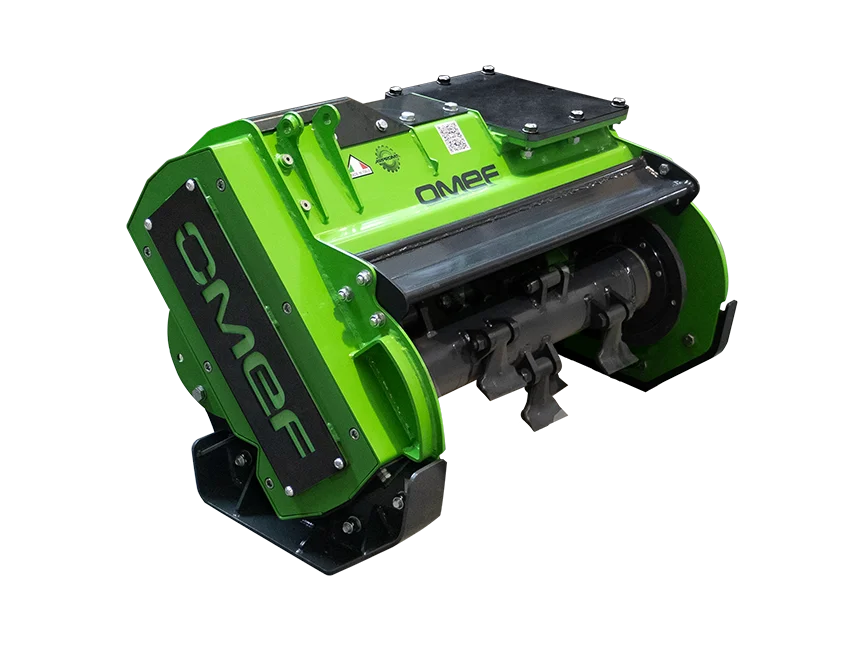

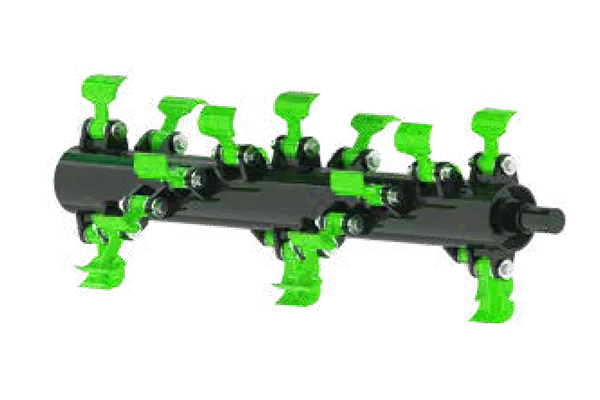

K/M2 ROTOR
Helical rotor dedicated to shredding grass, shrubs, brambles and reeds.
Cutting elements
KNIVES: quick and light for cutting and chopping mainly grass, shrubs and reeds up to 6 cm in diameter.
HAMMERS: heavy and strong for shredding grass but especially shrubs, brambles, reeds, up to 8 cm in diameter.
CUTTING ELEMENTS
KNIVES: quick and light for cutting and chopping mainly grass, shrubs and reeds up to 6 cm in diameter.
HAMMERS: heavy and strong for shredding grass but especially shrubs, brambles, reeds, up to 8 cm in diameter.
Cilindrata motore
Engine displacement
Cylindrée du moteur
TE1.9-70K/M2 TE1.9-70SPK/M2
4 – 8 tons
70 cm
28″
85x65x64 cm
34x25x24 inch
235 kg
517 lbs
——-
250 kg
551 lbs
16
170-220 bar
2900-3200 psi
30 l/min
8 gpm
3
10
TE2.9-90K/M2 TE2.9-90SPK/M2
4 – 8 tons
90 cm
36″
105x65x64cm
42x25x24 inch
275 kg
606 lbs
——–
290 kg
639 lbs
22-27-34
170-220 bar
2900-3200 psi
40-60 l/min
11-16
3
14
TE3.9-110K/M2 TE3.9-110SPK/M2
6 –10 tons
110 cm
44″
124x65x64 cm
49x25x24 inch
330 kg
728 lbs
———–
350 kg
772 lbs
22-27-34-43-51
200-220 bar
2900-3200 psi
40-100 l/min
14-28 gpm
3
16

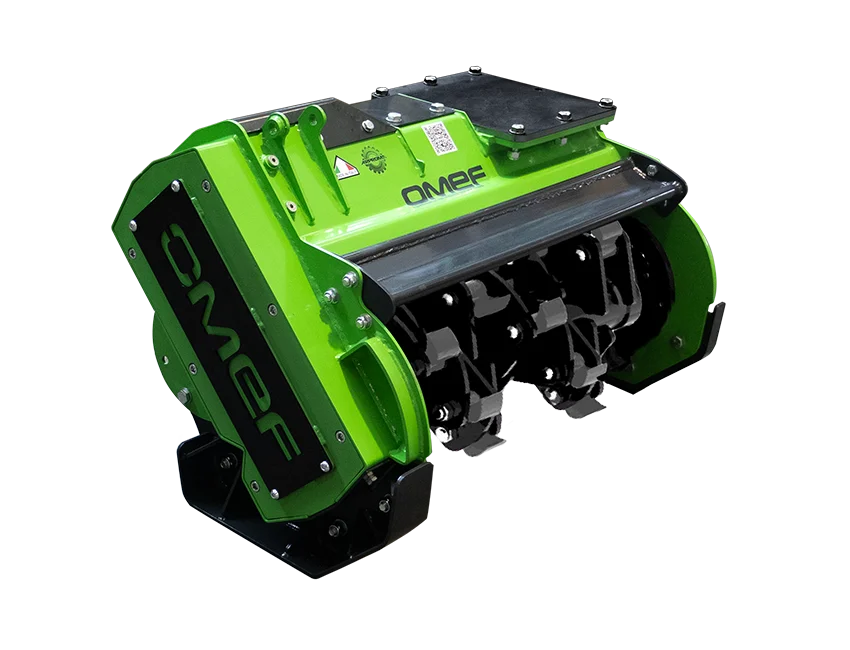

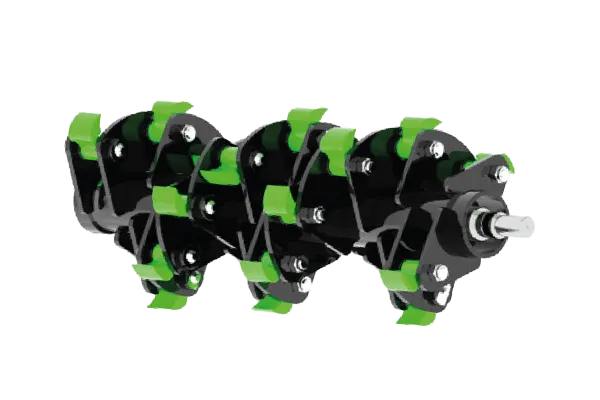

MSFS2 ROTOR
Helical rotor with retractable hammers, so that in the event of hitting stones or rocks the rotor is not damaged, for cutting all types of vegetation.
Cutting elements
RETRACTABLE HAMMERS: for shredding all types of vegetation such as grass, shrubs, brambles, reeds and plants up to 12 cm in diameter.
CUTTING ELEMENTS
RETRACTABLE HAMMERS: for shredding all types of vegetation such as grass, shrubs, brambles, reeds and plants up to 12 cm in diameter.
Cilindrata motore
Engine displacement
Cylindrée du moteur
TE1.9-70MSFS2 TE1.9-70SPMSFS2
5 – 8 tons
70 cm
28″
85x65x64 cm
34x25x24 inch
265 kg
584 lbs
——-
280 kg
617 lbs
40-50-60-80-100
200-220 bar
2900-3200 psi
40-100 l/min
14-28 gpm
3
12
TE2.9-90MSFS2 TE2.9-90SPMSFS2
6 – 8 tons
90 cm
36″
105x65x64cm
42x25x24 inch
325 kg
717 lbs
——–
340 kg
750 lbs
50-60-80-100
200-220 bar
2900-3200 psi
50-100 l/min
14-28 gpm
3
18
TE3.9-110MSFS2 TE3.9-110SPMSFS2
6 –12 tons
110 cm
44″
124x65x64 cm
49x25x24 inch
380 kg
838 lbs
———–
400 kg
882 lbs
50-60-80-100
200-220 bar
2900-3200 psi
50-100 l/min
14-28 gpm
3
22

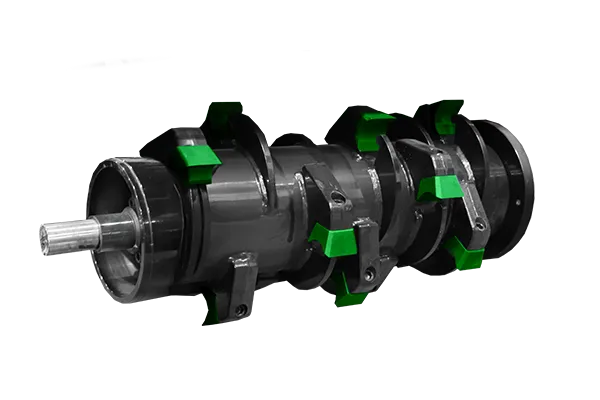

DF2 ROTOR
Robust fixed-tine rotor with grab limiter specially designed for the forestry sector, so that it does not sink into the material to be shredded.
Cutting elements
FORESTRY FIXED TINE: its wedge-shaped structure is ideal for shredding shrubs and plants up to 20 cm in diameter.
CUTTING ELEMENTS
FORESTRY FIXED TINE: its wedge-shaped structure is ideal for shredding shrubs and plants up to 20 cm in diameter.
Cilindrata motore
Engine displacement
Cylindrée du moteur
TE1.9-70DF2 TE1.9-70SPDF2
5 – 12 tons
70 cm
28″
85x65x64 cm
34x25x24 inch
345 kg
760 lbs
——-
360 kg
794 lbs
40-50-60-80-100
200-220 bar
2900-3200 psi
40-100 l/min
14-28 gpm
3
14
TE2.9-90DF2 TE2.9-90SPDF2
6 – 12 tons
90 cm
36″
105x65x64cm
42x25x24 inch
400 kg
760 lbs
——–
415 kg
915 lbs
50-60-80-100
200-220 bar
2900-3200 psi
50-100 l/min
14-28 gpm
3
18
TE3.9-110DF2 TE3.9-110SPDF2
6 – 12 tons
110 cm
44″
124x65x64 cm
49x25x24 inch
470 kg
1036 lbs
———–
490 kg
1080 lbs
50-60-80-100
200-220 bar
2900-3200 psi
50-100 l/min
14-28 gpm
3
22
CHOOSE THE MOTOR
Five motors of 22 – 27 – 34 – 43 – 51 cc are available for maximum performance.
Selectable according to the weight and hydraulic capacity of your machine.
Cilindrata motore
Engine displacement
Cylindrée du moteur
5 – 6 tons
22 cc
40 l/min
11 gpm
6 – 7 tons
27 cc
50 l/min
14 gpm
7 – 8 tons
34 cc
60 l/min
16 gpm
8 – 10 tons
43 cc
80 l/min
22 gpm
10 – 12 tons
51 cc
100 l/min
28 gpm
